New model Milling, drilling, tapping CNC turning Lathe center machine(BL-i42 ECOM)

  • 1 - 2 Units
    $52,800.00
  • 3 - 6 Units
    $52,000.00
  • >=7 Units
    $51,000.00
Max. Swing Diameter (mm):
42
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
BL-i42 ECO M
Condition:
New
Dimension(L*W*H):
2350*1700*1900mm
Certification:
CE
Voltage:
380/220/415 V
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Competitive Price
Weight (KG):
3000

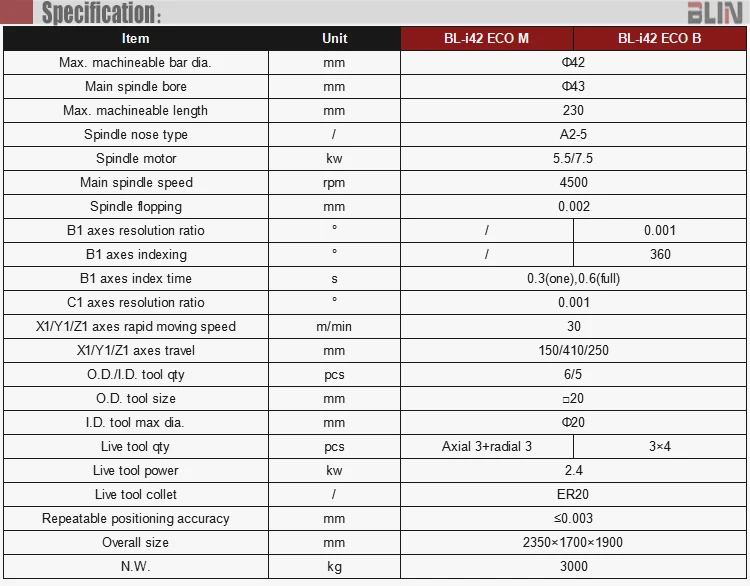

Max. Swing Diameter (mm):
42
Max. Length of Workpiece (mm):
230
Max.machineable bar dia.:
42
spindle bore:
43
Max.machineable length:
230
spindle nose type:
A2-5
CNC Controller:
SYNTEC 22TB
Live tool qty:
3+3
Live tool collet:
ER20
B1 axes index time:
0.3
C1 axes resolution ratio:
0.001
Spindle motor:
5.5
CNC or Not:
CNC
Automatic Grade:
Automatic
Power (kW):
5.5
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 To be negotiated

39years






 Main parts list:

Item

Brand

CNC controller

TWIWAN-SYNTEC 22TB

Servo driver&motor

TWIWAN-SYNTEC

Ball screw

TAIWAN-PMI/HIWIN

 Spindle bearing

JAPAN-NSK

Linear guideway

TAIWAN PMI/HIWIN

Ball screw bearing

TAIWAN

Lubrication system

TAIWAN-ISHAN

Main electricityfrance-schneider
B axesTAIWAN-GSK
Shaft coulpingTAIWAN

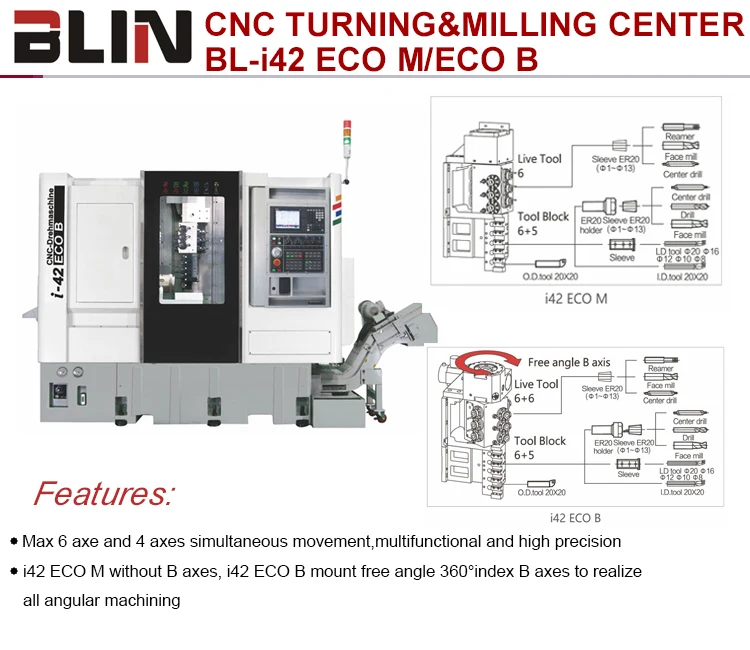

Features:
Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
Max 6 axe and 4 axes simultaneous movement,multifunctional and high precision
Adopt high quality FC35 MEEHANITE cast iron,hardness is higher than HRB190,high rigidity
Adopt high precision permanent magnetism electric spindle,magnet ring encoder, JAPAN high precise angle contact
ball bearing, achieve spindle’s high rigidity and good precision retention,spindle flop≤2μm
Adopt high precision ball screw and linear guideway
i42 ECO M without B axes, i42 ECO B mount free angle 360°index B axes to realize all angular machining
Hydraulic tailstock is available






4
