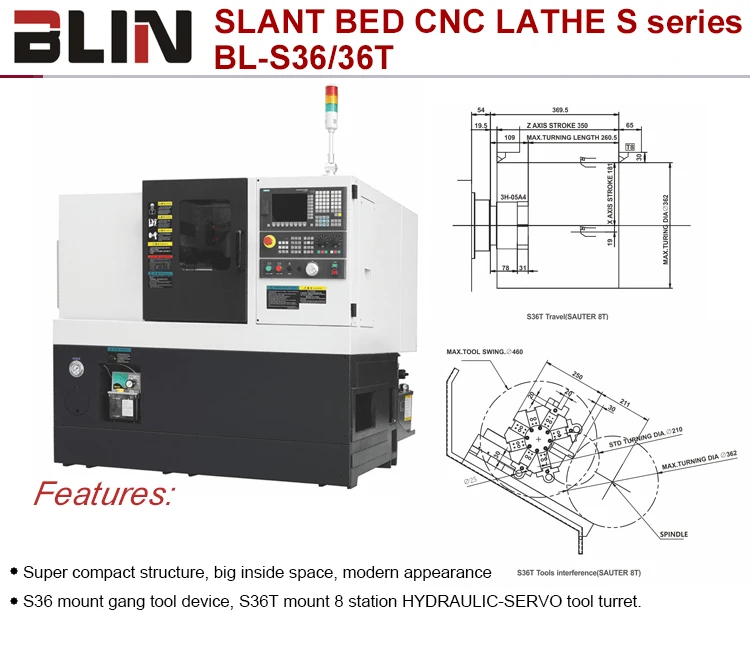

Ningbo TAIWAN Technology High Precision Slant Bed CNC Lathe machine for metal with live tooling(BL-S36/36T)

  • 1 - 1 Units
    $21,300.00
  • 2 - 5 Units
    $21,000.00
  • >=6 Units
    $20,000.00
Max. Swing Diameter (mm):
460mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Samples:
$21,300.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
2 years
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
China
Brand Name:
BLIN
Model Number:
BL-S36
Condition:
New
Dimension(L*W*H):
1560*1000*1500mm
Certification:
CE ISO
Voltage:
380/220/415
Max. Spindle Speed (r.p.m):
5000 r.p.m
Positioning Accuracy (mm):
0.01 mm
Repeatability (X/Y/Z) (mm):
0.008
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, trading company
Key Selling Points:
High-accuracy
Weight (KG):
2300
Max. Swing Diameter (mm):
460 mm
Max. Length of Workpiece (mm):
330 mm
Number of Axes:
4
Spindle Motor Power(kW):
5.5
No. of Spindles:
Single
Machining Capacity:
Light Duty
Max. swing dia. over bed:
460mm
Max. swing diameter over slide board:
130mm
Max.effective turning length:
330mm
spindle bore:
56
spindle type:
A2-5
Spindle speed:
5000rpm
Spindle motor power:
5.5kw
Turret type:
Gang tool
Chuck size:
6''
CNC Controller:
SIEMENS/FANUC
CNC or Not:
CNC
Automatic Grade:
Automatic
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 To be negotiated

1




 Main parts list:

Item

Brand

CNC controller

GERMANY-SIEMENS

X,Z axes driver&motor

GERMANY-SIEMENS

Spindle driver&motor

CHINA top-CTB/SFC

Spindle unit

TAIWAN-LOSEN

Servo tool turret

GERMANY-SAUTER

Ball screw

TAIWAN-PMI/HIWIN

 Ball screw bearing

JAPAN-NSK/TAIWAN-TPI

Linear guideway

TAIWAN PMI/HIWIN

Lubrication system

TAIWAN-ISHAN

Rotary oil cylinder&chuck

TAIWAN-CH-H

Hydraulic parts

TAIWAN/JAPAN

Coolant pump

Joint-venture

MPG

USA-HEDSS

Tri-color indication lamp

KOREA-QLIGHT

Isolation transformer

CHINA top-CHINT/JIUKO

Breaker

FRANCE-SCHNEIDER

AC contactor

FRANCE-SCHNEIDER

Relay

JAPAN-OMRON

DC Switching Mode Power Supply

TAIWAN-MEANWELL

Terminal block

GERMANY-WEIDMULLER

Synchronous belt

USA-GATES

Synchronous belt wheel

TAIWAN-PTP

Nuts

TAIWAN-YINSH

Shaft coulping

GERMANY-KTR/R+W

Extensible cover

JAPAN-LOCOSO

Chip conveyor&chip bucket

TAIWAN-WANHE

Coolant pipe

TAIWAN-WEIDING



Standard configuration:
SIEMENS 808D ADVANCED CNC controller
Hydraulic chuck
Gang too/8 station Hydraulic-servo tool turret(S36T)

Optional configuration:
SIEMENS 828D/FANUC 0i TF CNC controller
Automatic chip conveyor

22

4

6

BL-S50:https://youtu.be/qX1-U4OduSA
