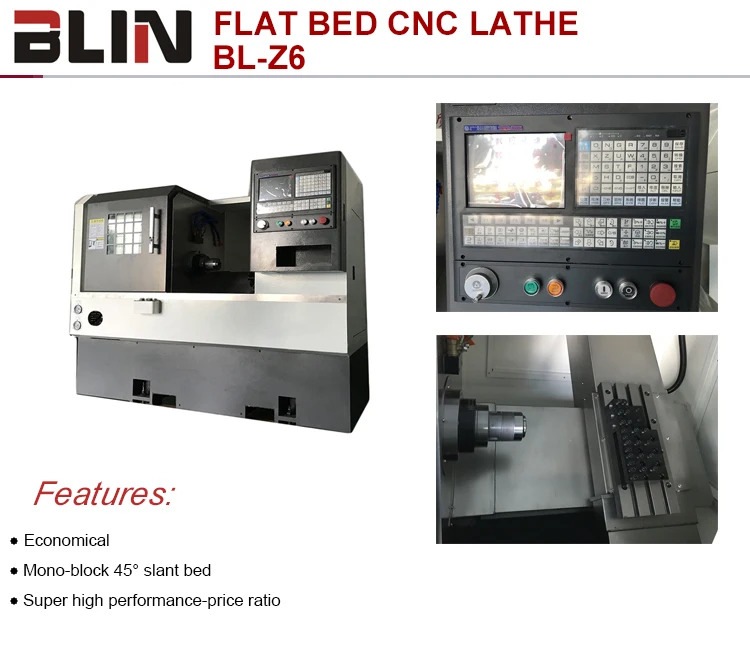

small spindle economic flat bed 3 axis cnc lathe machine machinery with bar feeder tool turret price for India sale BL-Z6T

  • 1 - 4 Units
    $14,500.00
  • >=5 Units
    $14,000.00
Max. Swing Diameter (mm):
450mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
BL-Z6T
Condition:
New
Dimension(L*W*H):
2000*1450*1600MM
Certification:
ISO CE
Voltage:
380V/220V
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Automatic
Weight (KG):
2000
Max. Swing Diameter (mm):
460
Max. Length of Workpiece (mm):
250
CNC Controller:
GSK/SIEMENS
Max. swing dia. over slide:
300mm
X axis travel:
360mm
Z axis travel:
310mm
X/Z axes servo motor:
7.5/7.5(GSK)
Max turning length:
250mm
Max. bar though dia.:
45mm
Spindle speed:
4500rpm
Spindle bore:
56mm
Tool turret Type:
6 station tool turret
CNC or Not:
CNC
Automatic Grade:
Automatic
Power (kW):
5.5
Supply Ability
Supply Ability:
1000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 To be negotiated


Main parts list:

ItemBrand
CNC controllerCHINA-GSK
Servo motor&driverCHINA-GSK
Spindle UnitCHINA Top
Spindle bearingCHINA Top-HRB
Ball screw bearingJAPAN-THT
Linear guidewayTAIWAN PMI
(Opt.:CHINA Top-HTPM)
Ball screwTAIWAN PMI
(Opt.:CHINA&JAPAN joint venture-LAIEN)
Chuck&oil cylinderTAIWAN(Opt.: CHINA brand)
Electricity partsFRANCE-SCHNEIDER

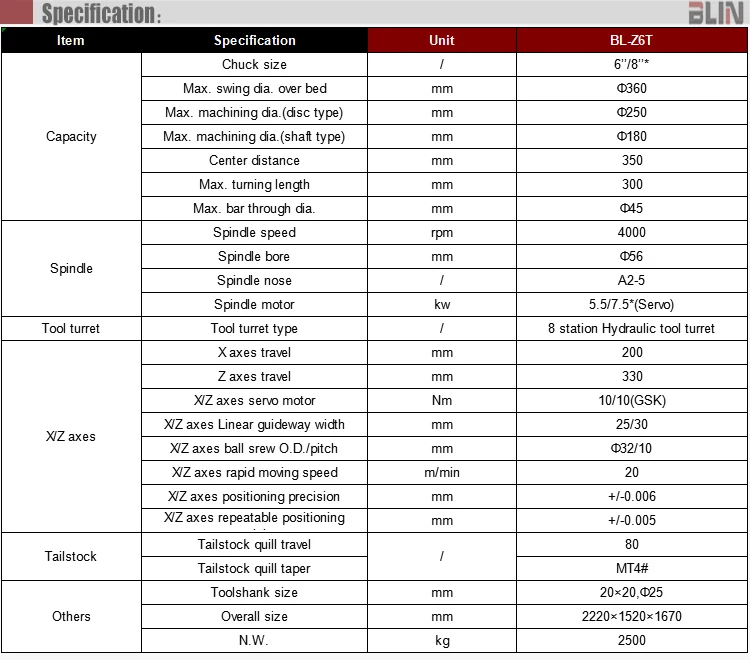

Standard configuration:

GSK980 CNC controller
X.Z axes motor&driver:GSK servo
Spindle: Spindel unit, GSK servo
Hydraulic chuck

8 station hydraulic tool turret

Hydraulic tailstock



Optional configuration:

SIEMENS/FANUC controller

Chip conveyor
Bar feeder
Live tool
