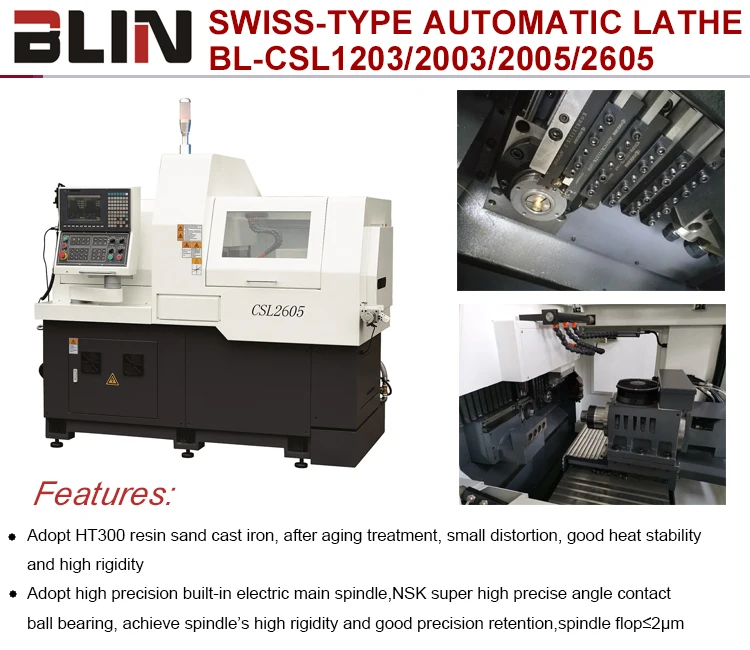

swiss type cnc automatic lathe machine CSL2005

  • 1 - 4 Units
    $34,500.00
  • >=5 Units
    $32,000.00
Max. Swing Diameter (mm):
20
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Samples:
$34,500.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
China
Brand Name:
BLIN
Model Number:
BL-CSL2005
Condition:
New
Dimension(L*W*H):
2000*1300*1700mm
Certification:
CE ISO
Voltage:
380
Max. Spindle Speed (r.p.m):
5000 r.p.m
Positioning Accuracy (mm):
0.01 mm
Repeatability (X/Y/Z) (mm):
0.008
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
High-accuracy
Weight (KG):
2500
Max. Swing Diameter (mm):
200 mm
Max. Length of Workpiece (mm):
200 mm
Number of Axes:
4
Spindle Motor Power(kW):
3.7
No. of Spindles:
Single
Machining Capacity:
Light Duty
Main spindle bore:
25 mm
Fixed guide bushing:
200 mm
Max. face drilling dia.:
10 mm
Rotary guide bushing:
50 mm
Main spindle speed:
6000 rpm
Max. face tapping dia.:
M8
Live tool speed:
5000 rpm
Repeat positioning accuracy:
0.003 mm
Spindle flopping:
0.002 mm
Axial drilling tool:
4(ER16)
CNC or Not:
CNC
Automatic Grade:
Automatic
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 To be negotiated

1

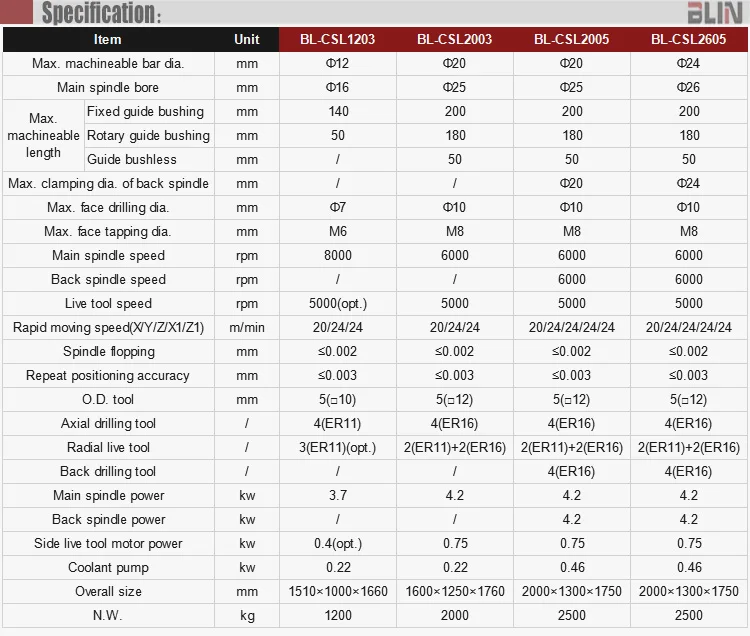

Main parts list:



ItemBrand
CNC controllerTAIWAN-SYNTEC
Spindle driverTAIWAN-SYNTEC
Servo electric spindleOwn-made
Ball screwTAIWAN HIWIN
Linear guidewayTAIWAN HIWIN
Spindle and ball screw bearingJAPAN-NSK
Lubrication systemJAPAN-HERG
Main electricity partsFRANCE-SCHNEIDER
Pneumatic partsTAIWAN-YINSH
NutsTAIWAN-YINSH
Shaft coulpingGERMANY-KTR



Standard configuration:

SYNTEC 21TB/210TB CNC controller

Fixed guide bushing

Live tool



234



5
