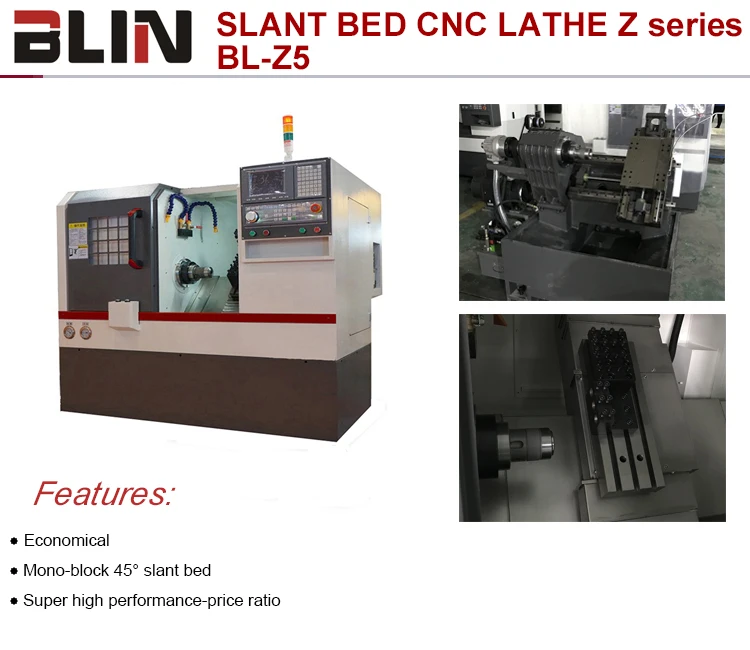

Mini slant bed cnc lathe machine metal price with bar feeder for India BL-Z5

  • >=1 Units
    $10,000.00

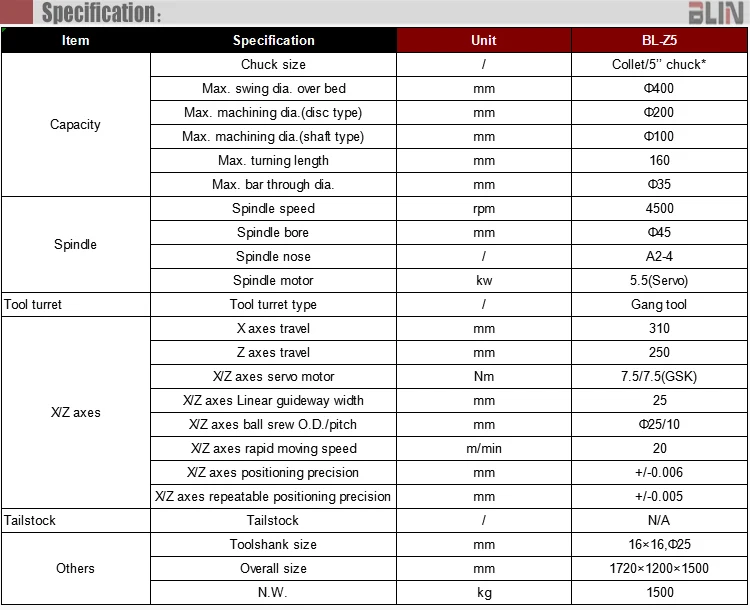

Max. Swing Diameter (mm):
400mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
BL-Z5
Condition:
New
Dimension(L*W*H):
1720*1200*1500MM
Certification:
ISO CE
Voltage:
380V/220V
Max. Spindle Speed (r.p.m):
4500 r.p.m
Positioning Accuracy (mm):
0.01 mm
Repeatability (X/Y/Z) (mm):
0.005
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Competitive Price
Weight (KG):
1500
Max. Swing Diameter (mm):
400 mm
Max. Length of Workpiece (mm):
160 mm
Number of Axes:
2
Spindle Motor Power(kW):
5.5
No. of Spindles:
Single
Machining Capacity:
Light Duty
CNC Controller:
GSK/SIEMENS
Max. swing dia. over slide:
200mm
X axis travel:
310mm
Z axis travel:
250mm
X/Z axes servo motor:
7.5/7.5(GSK)
Max turning length:
160mm
Max. bar though dia.:
35mm
Spindle speed:
4500rpm
Spindle bore:
45mm
Tool turret Type:
Gang tool
CNC or Not:
CNC
Automatic Grade:
Automatic
Supply Ability
Supply Ability:
1000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 To be negotiated


Main parts list:

ItemBrand
CNC controllerCHINA-GSK
Servo motor&driverCHINA-GSK
Spindle UnitCHINA Top
Spindle bearingCHINA Top-HRB
Ball screw bearingJAPAN-THT
Linear guidewayTAIWAN PMI
(Opt.:CHINA Top-HTPM)
Ball screwTAIWAN PMI
(Opt.:CHINA&JAPAN joint venture-LAIEN)
Chuck&oil cylinderTAIWAN(Opt.: CHINA brand)
Electricity partsFRANCE-SCHNEIDER

Standard configuration:

GSK980 CNC controller
X.Z axes motor&driver:GSK servo
Spindle: Spindel unit, GSK servo
Hydraulic collet
Gang tool



Optional configuration:



SIEMENS/FANUC controller
Hydraulic chuck
Bar feeder
Live tool
