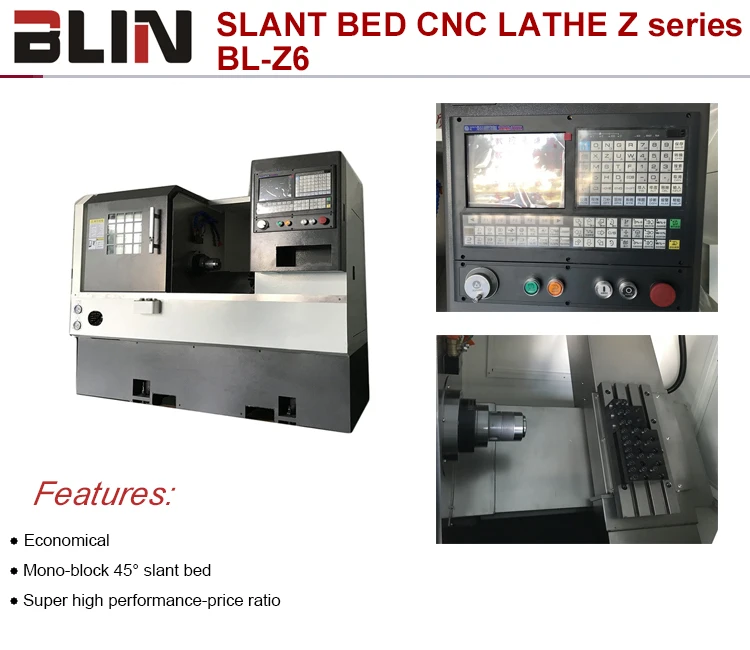

small spindle flat bed 3 axis cnc lathe machine machinery with bar feeder price for India sale BL-Z6

  • 1 - 2 Units
    $12,500.00
  • >=3 Units
    $12,000.00
Max. Swing Diameter (mm):
450mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Customized packaging (Min. Order: 10 Units)

More

Graphic customization (Min. Order: 10 Units) Less
Samples:
$12,500.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
China
Brand Name:
BLIN
Model Number:
BL-Z6
Condition:
New
Dimension(L*W*H):
2000*1450*1600MM
Certification:
ISO CE
Voltage:
380V/220V
Max. Spindle Speed (r.p.m):
4500 r.p.m
Positioning Accuracy (mm):
0.01 mm
Repeatability (X/Y/Z) (mm):
0.005
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Competitive Price
Weight (KG):
2000
Max. Swing Diameter (mm):
450 mm
Max. Length of Workpiece (mm):
250 mm
Number of Axes:
2
Spindle Motor Power(kW):
5.5
No. of Spindles:
Single
Machining Capacity:
Light Duty
CNC Controller:
GSK/SIEMENS

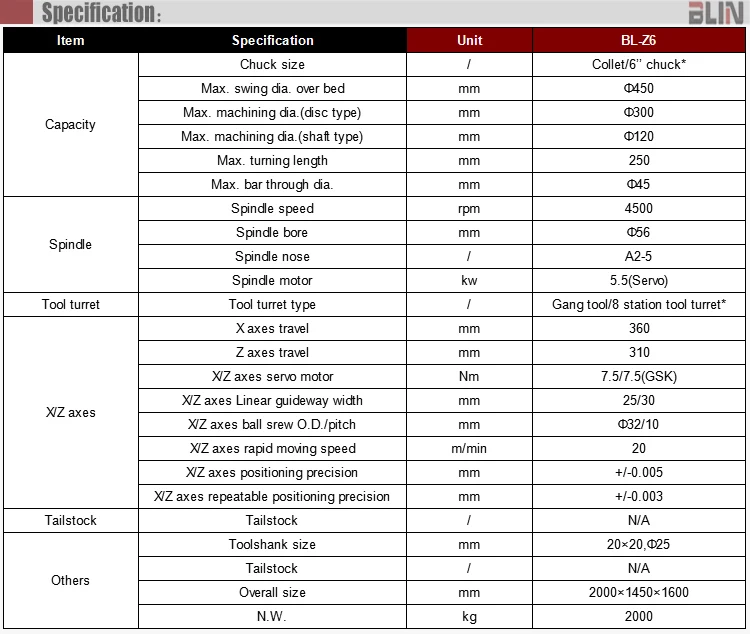

Max. swing dia. over slide:
300mm
X axis travel:
360mm
Z axis travel:
310mm
X/Z axes servo motor:
7.5/7.5(GSK)
Max turning length:
250mm
Max. bar though dia.:
45mm
Spindle speed:
4500rpm
Spindle bore:
56mm
Tool turret Type:
Gang tool/8 station tool turret
CNC or Not:
CNC
Automatic Grade:
Automatic
Supply Ability
Supply Ability:
1000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 To be negotiated


Main parts list:

ItemBrand
CNC controllerCHINA-GSK
Servo motor&driverCHINA-GSK
Spindle UnitCHINA Top
Spindle bearingCHINA Top-HRB
Ball screw bearingJAPAN-THT
Linear guidewayTAIWAN PMI
(Opt.:CHINA Top-HTPM)
Ball screwTAIWAN PMI
(Opt.:CHINA&JAPAN joint venture-LAIEN)
Chuck&oil cylinderTAIWAN(Opt.: CHINA brand)
Electricity partsFRANCE-SCHNEIDER

Standard configuration:

GSK980 CNC controller
X.Z axes motor&driver:GSK servo
Spindle: Spindel unit, GSK servo
Hydraulic collet
Gang tool



Optional configuration:



SIEMENS/FANUC controller
Hydraulic chuck

8 station tool turret
Bar feeder
Live tool
