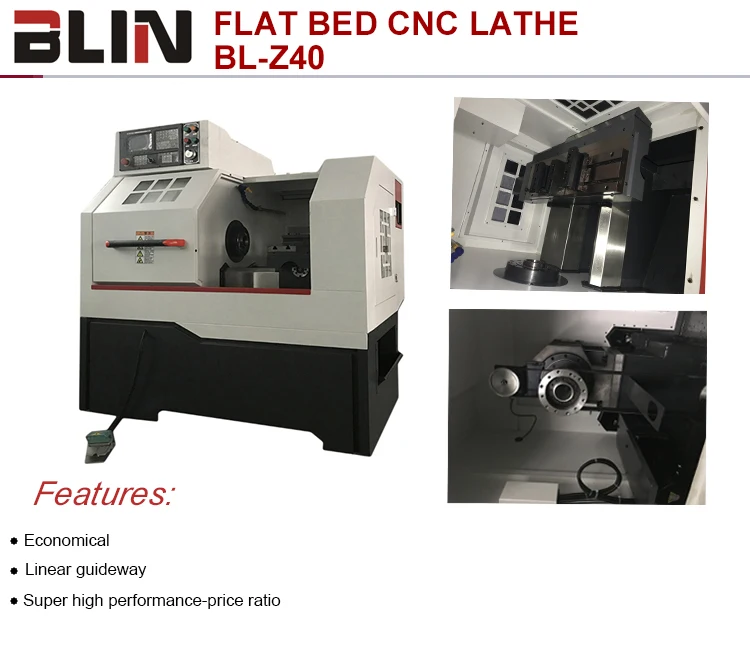

Mini low cost cnc flat bed metal lathe machine with bar feeder price for India BL-Z0632

  • >=1 Units
    $7,600.00

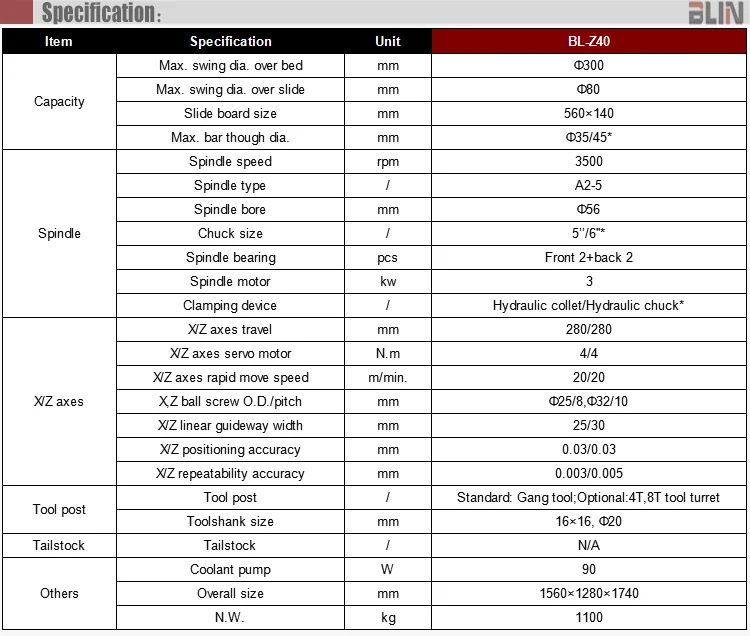

Max. Swing Diameter (mm):
300mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
BL-Z40(0632)
Condition:
New
Dimension(L*W*H):
1560*1280*1740MM
Certification:
ISO CE
Voltage:
380V/220V
Max. Spindle Speed (r.p.m):
3500
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Competitive Price
Weight (KG):
1100
Max. Swing Diameter (mm):
300
Max. Length of Workpiece (mm):
200
CNC Controller:
GSK/SIEMENS
Max. swing dia. over slide:
80mm
X axis travel:
280mm
Z axis travel:
280mm
Slide board size:
560*140mm
Max. bar though dia.:
35/45mm
Spindle speed:
3500rpm
Spindle bore:
56mm
Chuck size:
6''/5''
Clamping device:
Hydraulic collet/chuck
CNC or Not:
CNC
Automatic Grade:
Automatic
Power (kW):
3
Supply Ability
Supply Ability:
1000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 To be negotiated


Main parts list:

ItemBrand
BearingsCHINA top
Ball screwTAIWAN-PMI
Linear guidewayTAIWAN-PMI
Spindle unitCHINA well-known
Rotary oil cylinderCHINA top
Main electric partsCHINA top
Working lampCHINA top LED



Standard configuration:

GSK980TC3 CNC Controller

Spindle unit

Hydraulic collet

Gang tool

Optional configuration:

SIEMENS 808D ADVANCED CNC controller

Servo spindle motor

Hydraulic chuck

4,8 station ELECTRIC tool turret
