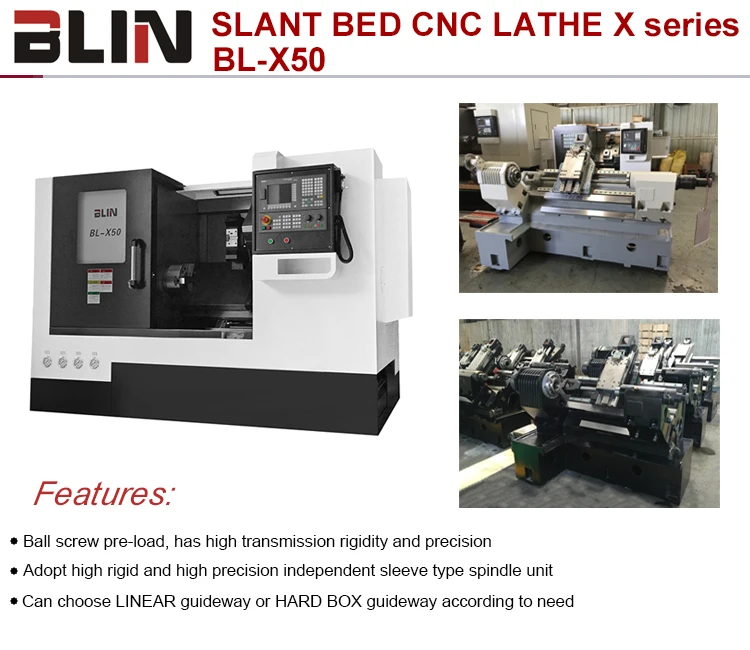

New fanuc machinery China slant bed CNC lathe machine with C axis price for Russian (BL-X50)

  • >=1 Units
    $27,700.00

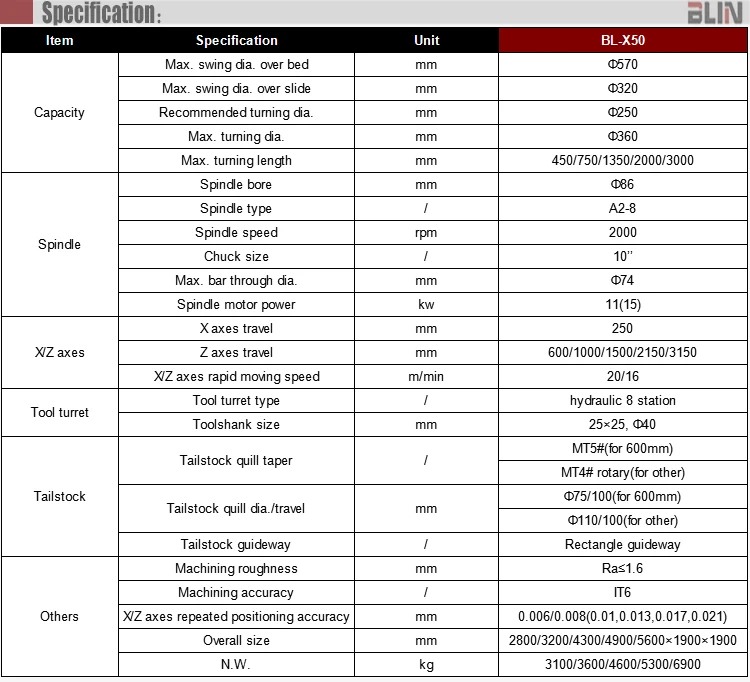

Max. Swing Diameter (mm):
570mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
BL-X50
Condition:
New
Dimension(L*W*H):
2800*1900*1900mm
Certification:
CE ISO
Voltage:
380/220/415
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Competitive Price
Weight (KG):
3100
Max. Swing Diameter (mm):
570
Max. Length of Workpiece (mm):
3000
Max. turning dia.:
360mm
Max. turning length:
450/750/1350/2000/3000mm
Spindle bore:
86mm
Spindle type:
A2-8
Spindle speed:
2000rpm
Spindle motor power:
11(15)
Chuck size:
10
Max. bar through dia.:
74mm
Tool turret type:
hydraulic 8 station
CNC Controller:
SIEMENS/FANUC/GSK
CNC or Not:
CNC
Automatic Grade:
Automatic
Power (kW):
11
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 To be negotiated


Main parts list:

ItemBrand
Spindle bearingChina top brand
Ball screw bearingJAPAN-NSK
Ball screwTAIWAN-HIWIN/PMI  C3 class
Linear guidewayTAIWAN-HIWIN/PMI P class
Spindle motorCHIAN top-CTB
Chuck&cylinderTAIWAN
Hydraulic partsTAIWAN
Tool turretTAIWAN
Lubrication pumpJotint-Venture
Electric partsFRANCE-SCHNEIDER



Standard configuration:
SIEMENS 808D ADVANCED CNC Controller
Hydraulic chuck
8 station hydraulic tool turret
Hydraulic tailstock
Optional configuration:
GSK/FANUC CNC controller
Chip conveyor
Hydraulic steady rest

2345

BL-X50 machining:https://youtu.be/0pFu5aNSDDw
BL-X50 machining(500 860):https://youtu.be/hCq03H9jslc
BL-X50 long shaft machining:https://youtu.be/3snt6GXkfmY
BL-X50 Slant bed cnc lathe mount powered tool turret:https://youtu.be/niFXtbUZyMQ
                                                                                       https://youtu.be/06Rox6fNJHI
                                                                                       https://youtu.be/jKe5onKZHbk

6
