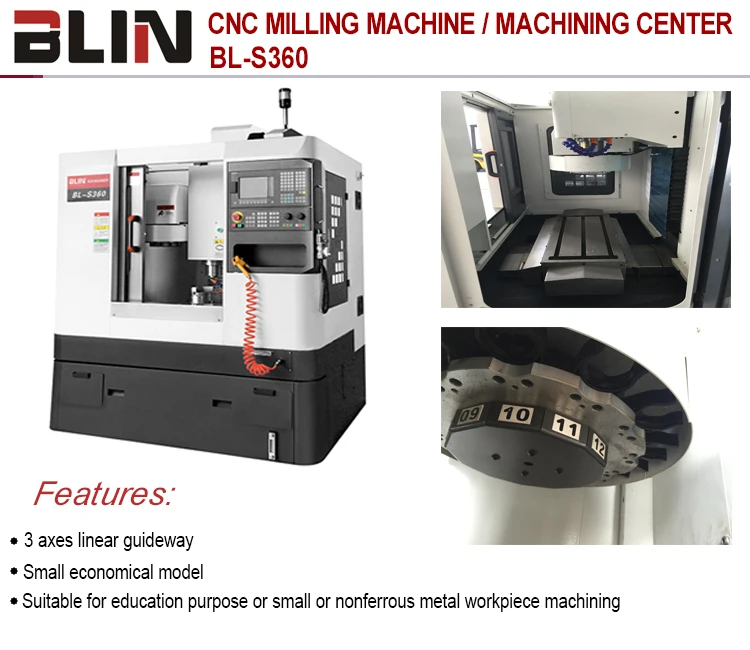

Small 3 axis CNC 5 axis Vertical Mini Metal VMC Milling Machine 4 axis Machining Center with tool changer price for sale BL-S360

  • 1 - 2 Units
    $17,500.00
  • 3 - 6 Units
    $17,000.00
  • 7 - 9 Units
    $16,500.00
  • >=10 Units
    $16,000.00
Model Number:
BL-S360
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 5 Units)
Report Suspicious Activity
Overview

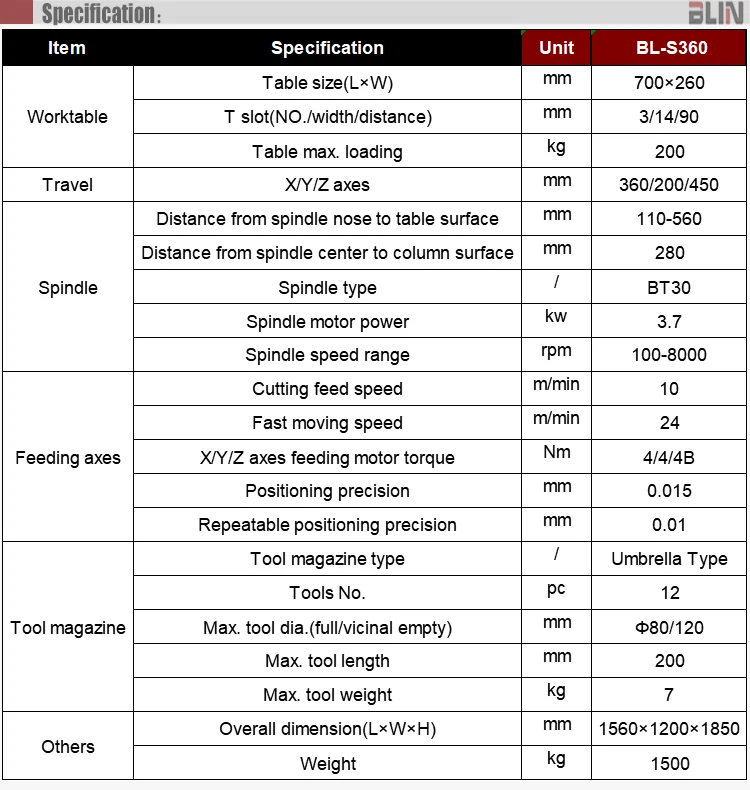

Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Trading company
No. of Spindles:
Single
Spindle Taper:
BT30
Condition:
New
Type:
Vertical
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Voltage:
380/220/415
Dimension(L*W*H):
1560*1200*1850mm
Weight (T):
1.5 T
Certification:
SE ISO
CNC Control System:
Siemens
Table Travel (X) (mm):
360 mm
Table Travel (Y) (mm):
200 mm
Table Travel (Z) (mm):
450 mm
Table Size (mm):
700*260
Positioning Accuracy (mm):
0.02 mm
Repeatability (X/Y/Z) (mm):
0.01
Range of Spindle Speed(r.p.m):
100 - 8000 r.p.m
Number of Axes:
3
Spindle Motor Power(kW):
3.7
Max. Table Load(kg):
200 kg
Feed Speed(mm/min):
1000 - 10000 mm/min
Rapid Feed Speed(m/min):
24
Min. Time of Tool Change(s):
2
Tool Magazine Capacity:
12
Key Selling Points:
Competitive Price
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
CNC controller:
Siemens/Syntec
Guideway:
linear guideway
T slot:
3/14/90mm
Distance from spindle center to column:
280mm
X/Y/Z feeding motor torque:
3.5/3.5/3.5Nm
Distance from spindle nose to table face:
110-560mm
Spindle type:
BT30
Max. tool dia:
80/120mm(full/vicinal empty)
Max. tool weight:
7kg
Max. tool length:
200mm
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 To be negotiated


















Standard configuration:

SIEMENS 808D Advanced CNC controller
Spindle servo motor&driver
X/Y/Z axes servo motor&driver
12T Umbrellal type tool magazine

Optional configuration:
4th axes

5th axes



Main parts list:

Parts

Brand

Ball screw

TAIWAN HIWIN/PMI

Linear guideway

TAIWAN HIWIN/PMI

Spindle unit

TAIWAN KENTURN

Spindle driver&motor

CHINA Top-CTB

                   Tool magazine

                                   TAIWAN SANJET

Air-oil cylinder

                                         TAIWAN

Pneumatic parts

TAIWAN AIRTAC

Main electric parts

FRANCE SCHNEIDER

Working lamp

CHINA LED

Lubrication pump

                                      Joint-venture




S360:https://youtu.be/5A0ZBtJczVQ
         https://youtu.be/LntOi_MZOYc

S360 with 4 axes:https://youtu.be/h_bDxPRnEfE
