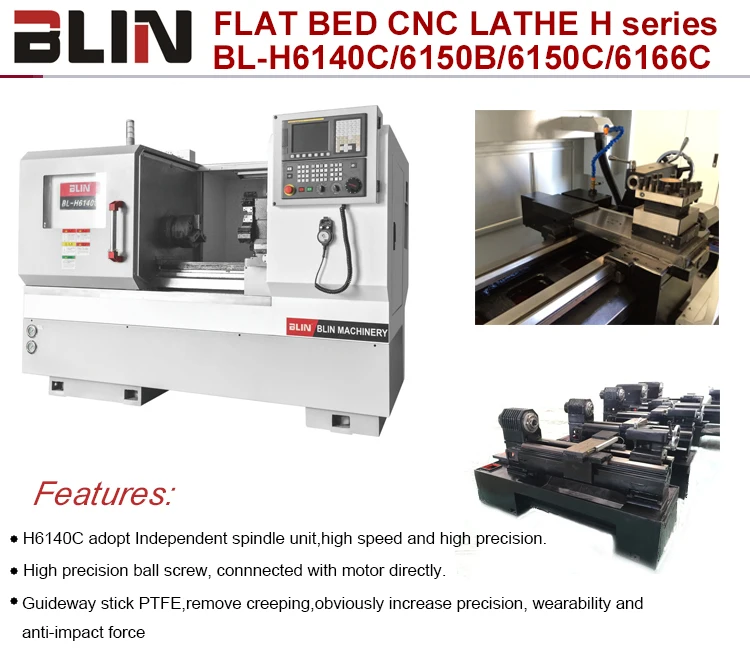

China CNC Lathe Machine automatic price small Flat Bed for sale (BL-H6140C)

  • >=1 Units
    $12,000.00
Max. Swing Diameter (mm):
420mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 6 Units)
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
BL-H6140C
Condition:
New
Dimension(L*W*H):
2350*1500*1600mm
Certification:
CE ISO
Voltage:
380V/220V/415V
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Automatic
Weight (KG):
2100
Max. Swing Diameter (mm):
420
Max. Length of Workpiece (mm):
750
CNC Controller:
Siemens Fanuc
Max. Swing Dia. Over Slide:
230mm
Guideway Width:
350mm
Center Distance:
750/1000mm
Max. Turning Dia.:
360/270mm
X/Z Axes Travel:
220/750(1000)mm
Spindle bore:
66mm
Spindle speed:
Independent Spindle,stepless
Chuck size:
8
Tool turret type:
4,6,8 station
CNC or Not:
CNC
Automatic Grade:
Automatic
Power (kW):
7.5
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL); Wooden/steel Pallet(FCL)
Port
NINGBO
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 To be negotiated







.jpg

Main parts list:

Item

Brand

Bearings

CHINA top-HRB

Ball screw

CHINA top

Electric parts

CHINA top

Hydraulic parts

TAIWAN

Lubrication pump

Joint-venture



Standard configuration:
SIEMENS 808D ADVANCED CNC Controller
Manual Chuck
4 station tool post
Manual Tailstock



Optional configuration:

GSK/FANUC controller

Hydraulic chuck
Pneumatic/Hydraulic tailstock
6/8 station tool turret



2






45



BL-H6140C:Spindle speed:https://youtu.be/ZXUpAjjBex4

BL-H6140C:thread turning:https://youtu.be/rbaboUN6Wxc
BL-H6140C:cylindrical turning taper turning:https://youtu.be/Hkib4-l1jRQ
