Flat Bed CNC Lathe High Precision Mini full form of CNC Lathe machine (BL-CK6130)

  • >=1 Units
    $8,000.00
Max. Swing Diameter (mm):
300mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
BL-CK6130
Condition:
New
Dimension(L*W*H):
1710*1160*1600mm
Certification:
CE ISO
Voltage:
380V/220V/415V
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Competitive Price
Weight (KG):
1400
Max.Swing Dia.Over Slide:
160mm
Guideway width:
300mm
Spindle speed:
200-3000rpm
Spindle bore:
48mm
Spindle motor:
5.5kw
X/Z axes travel:
260/450mm
Tool turret type:
4T/gang tool/6,8T Station
Spindle type:
A2-5
Torque of X/Z axes motor:
4/6 N.m
CNC Controller:
SIEMENS/SYNTEC
CNC or Not:
CNC
Automatic Grade:
Automatic
Max. Swing Diameter:
300mm
Power(W):
4000
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood case (LCL);
Wooden/steel Pallet (FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 To be negotiated

1

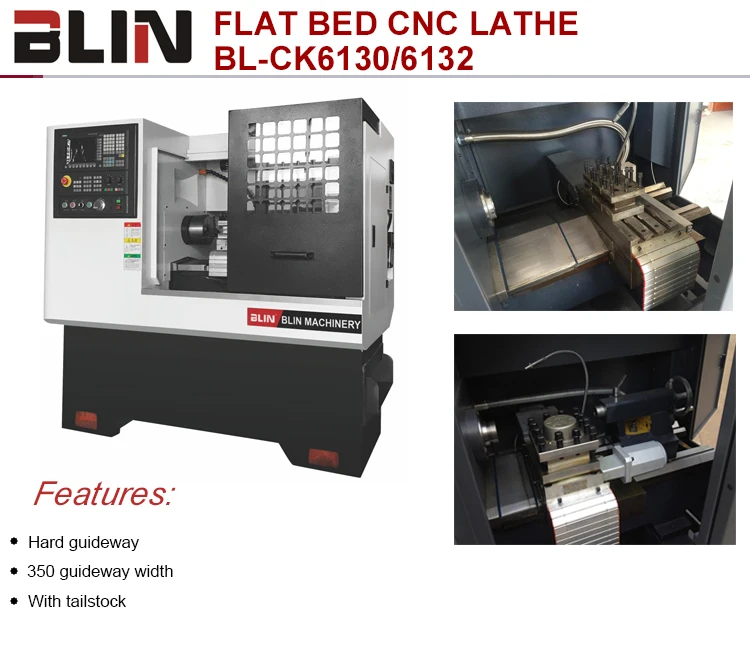

6132 6130.jpgCK6130.jpg

 Main parts list:

ItemBrand
BearingChina top-HRB P4 class
Ball screwChina top
Spindle lipidUS SHELL
ContactorSIEMENS OEM
ButtonsTAIWAN
Air cylinderChina-germany joint
Pnuematic partsTAIWAN AIRTAC
Electricity partsChina top
Travel switchChina top
linkagerJAPAN
Hydraulic partsTAIWAN

Standard configuration:

SIEMENS 808D CNC controller with MPG

Spindle stepless

Hydraulic collet

4 station tool post

Manual Tailstock
Optional configuration:

SYNTEC CNC controller

Hydraulic/manlual chuck

5.5kw(Q6130)/7.5kw(Q6132) spindle motor

Gang tool, 6,8 station tool turret

Pneumatic/hydraulic tailstock

Automatic bar feeder



2346

BL-Q6132 machining:https://youtu.be/Nwa63dYX3IE

                               https://youtu.be/wtDleVGI4bA



5
