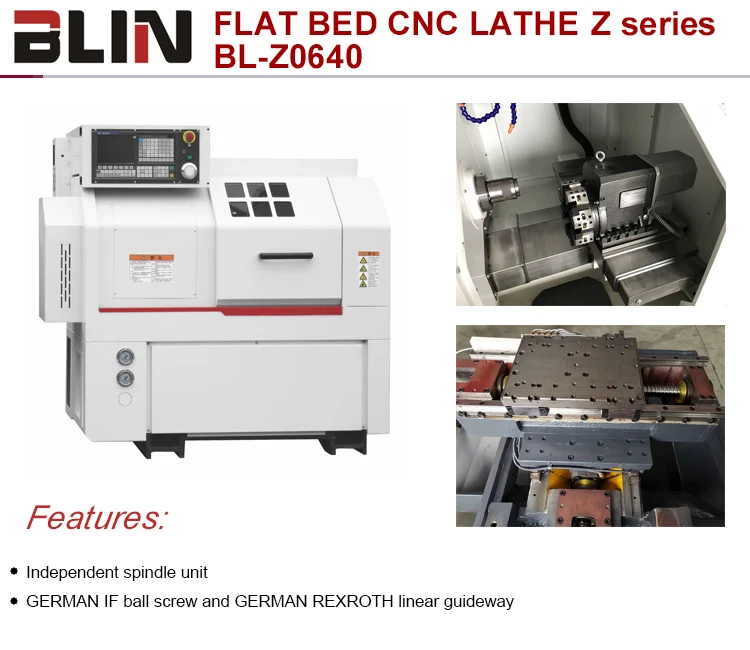

China Small Linear Guideway automatic CNC metalworker Lathe Machine with bar feeder(BL-Z0640)

  • 1 - 2 Units
    $11,000.00
  • 3 - 6 Units
    $10,500.00
  • >=7 Units
    $10,000.00
Max. Swing Diameter (mm):
300mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Samples:
$11,000.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity

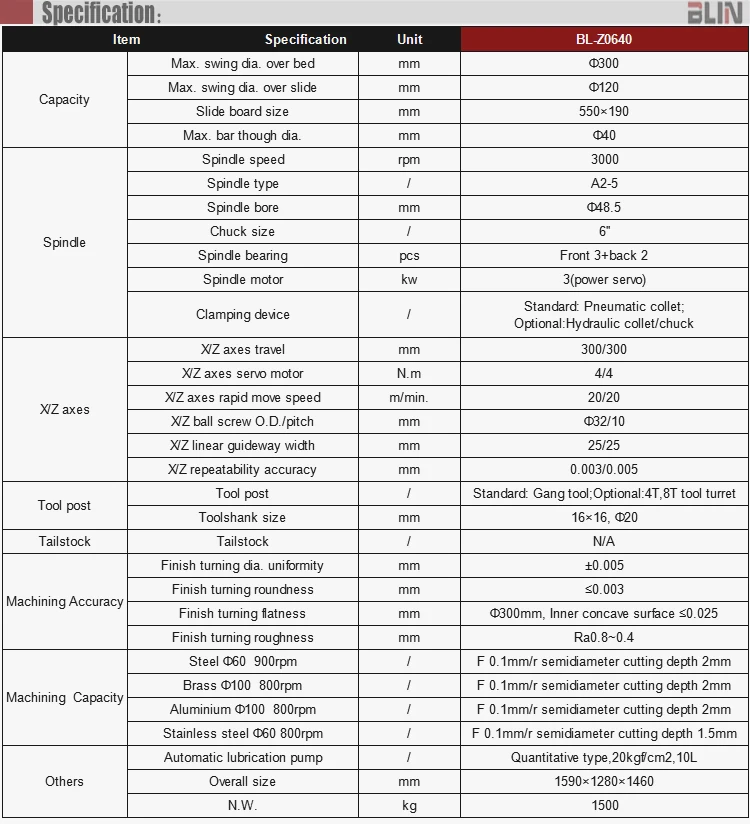

Overview
Quick Details
Type:
Horizontal
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Place of Origin:
China
Brand Name:
BLIN
Model Number:
BL-Z0640
Condition:
New
Dimension(L*W*H):
1590*1280*1460mm
Certification:
CE ISO
Voltage:
220/415/380v
Max. Spindle Speed (r.p.m):
4000 r.p.m
Positioning Accuracy (mm):
0.01 mm
Repeatability (X/Y/Z) (mm):
0.003/0.005
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Competitive Price
Weight (KG):
1700
Max. Swing Diameter (mm):
300 mm
Max. Length of Workpiece (mm):
300 mm
Number of Axes:
2
Spindle Motor Power(kW):
3.7
No. of Spindles:
Single
Machining Capacity:
Light Duty
Max. Swing Dia. Over Slide:
100mm
Spindle Speed:
4000
Spindle type:
A2-5
Spindle bore:
48.5mm
Spindle motor:
3.7/5.5 kw
X/Z Axes Travel:
330/300mm
X/Z Axes Rapid Move Speed:
20/20m/min
Tool post:
Gang tool
X/Z Axes servo motor:
4/4
Ball Screw O.D./Pitch:
32/10mm
CNC or Not:
CNC
Automatic Grade:
Automatic
Supply Ability
Supply Ability:
600 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 40 To be negotiated


Main parts list:

ItemBrand
Spindle bearingsJAPAN-NSK
Ball screw bearingCHINA top-HRB
Linear guidewayGERMANY-REXROTH

Spindle unit

CHINA well-known/TAIWAN
Hydraulic partsTAIWAN
Lubrication pumpJoint-venture
Main electric partsFRANCE-SCHNEIDER
Working lampCHINA top LED



Standard configuration:
SIEMENS 808D ADVANCED CNC Controller
Hydraulic collet
Gang tool

Optional configuration:
GSK980TC3 CNC controller
3.7kw standard servo motor
Hydraulic chuck
4,8 station ELECTRIC tool turret
C axes& Live tool



2345
