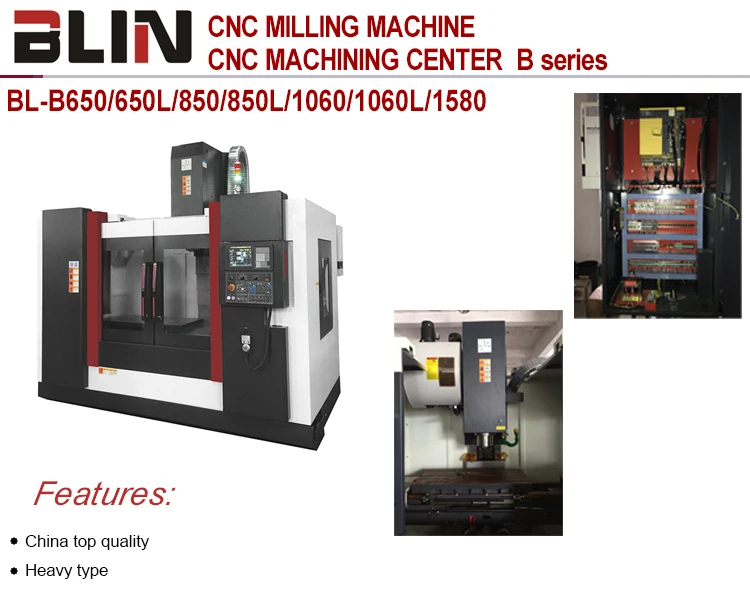

China Heavy duty Type equipment Vertical CNC Milling Machine(BL-B650/650L)

  • >=1 Units
    $30,000.00
Model Number:
BL-B650/650L
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 5 Units)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 Year
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Voltage:
380v
Certification:
CE ISO
Type:
Vertical
Dimension(L*W*H):
2500*2300*2300mm
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Competitive Price

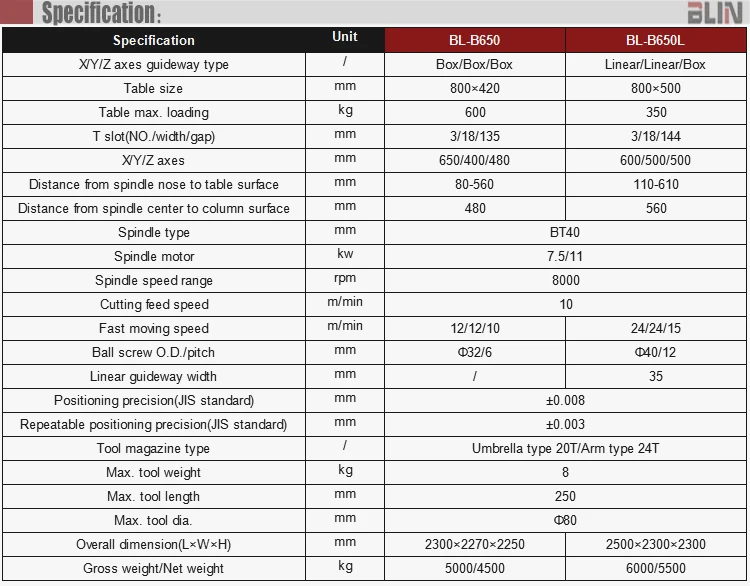

Table size:
800*420(800*500)mm
Table max. loading:
600/350mm
T slot(NO./width/gap):
3/18/135(3/18/144)
Spindle type:
BT40
Spindle motor:
7.5/11kw
Spindle speed range:
8000rpm
Cutting feed speed:
10m/min
Positioning precision(JIS standard):
±0.008
Max. tool weight:
8kg
Tool magazine type:
Umbrella type 20T/Arm type 24T
After-sales Service Provided:
Online support, Video technical support
Power(W):
7.5/11kw
Weight:
5000/4500kg
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 60 To be negotiated

1B SERIES.jpgB650.jpg



PartsBrand
BearingsJAPAN NSK/NTN
Ball screwTAIWAN HIWIN/PMI
Linear guidewayTAIWAN HIWIN/PMI
SpindleTAIWAN
Tool magazineCHINA Top
Servo motor& driverGERMAN SIEMENS/JAPAN FANUC
Air-oil cylinderTAIWAN
Lubrication pumpJAPAN HERG

Standard configuration:

SIEMENS 828D CNC Controller

24T ARM type tool magazine

Optional configuration:

FANUC 0I TF CNC Controller

20T Umbrella type tool magazine

Chip conveyor

4th axes rotary table
