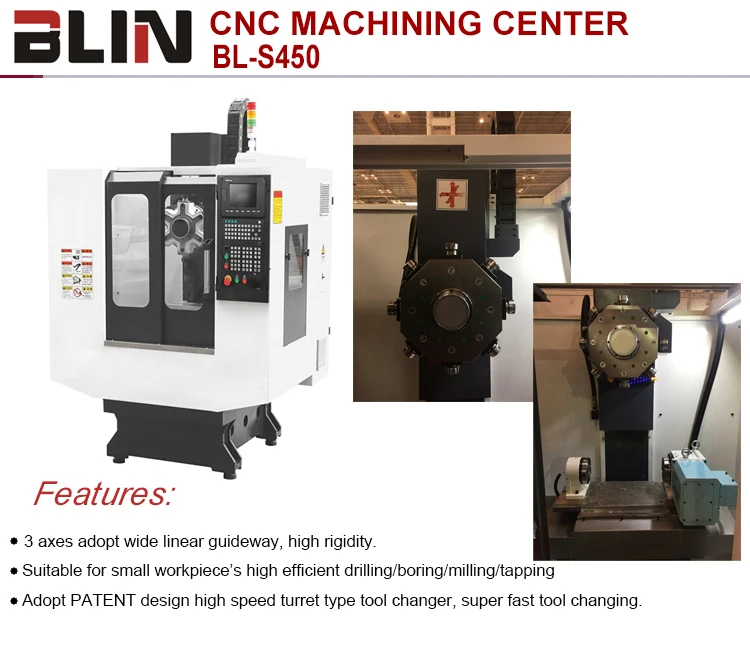

Small cnc vertical milling machine with 3 axis linear guideway high precision 4 axis (BL-S450)

  • >=1 Units
    $15,700.00
Model Number:
BL-S450
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Condition:
New
Type:
Vertical
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Voltage:
380/220/415V
Dimension(L*W*H):
1400*1500*2300mm
Weight (T):
2
Certification:
CE ISO
Table Travel (X) (mm):
450
Table Travel (Y) (mm):
300
Table Travel (Z) (mm):
330
Positioning Accuracy (mm):
0.012
Repeatability (X/Y/Z) (mm):
0.005
Key Selling Points:
Competitive Price
Warranty:
1 year
After-sales Service Provided:
Online support
Table size:
550*320 mm
Table max. loading:
200kg
T slot(NO./width/distance):
3/14/92mm

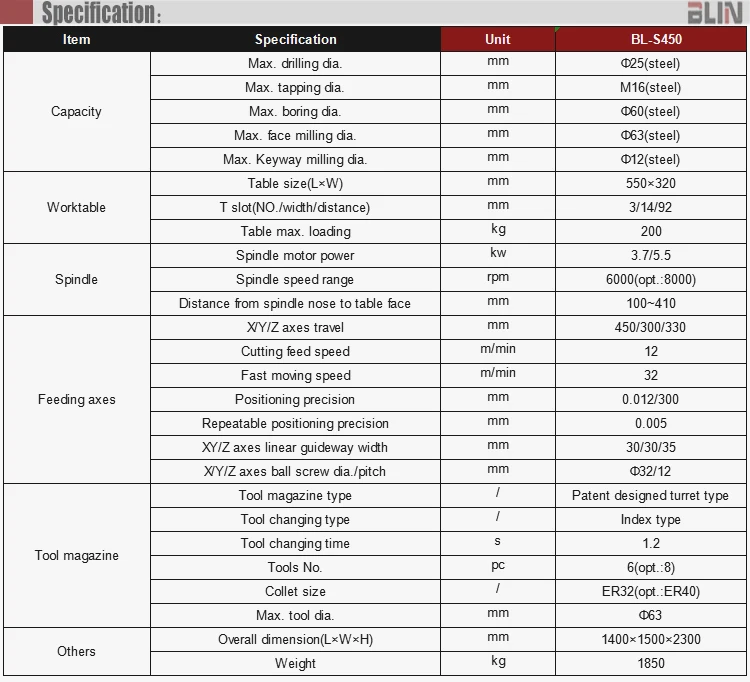

Max. drilling dia.:
25(steel)mm
Max. tapping dia.:
M16(steel)mm
Max. boring dia.:
60(steel)mm
Max. face milling dia.:
63(steel)mm
Max. Keyway milling dia.:
12(steel)mm
Tool magazine type:
Patent designed turret type
CNC Controller:
SYNTEC/SIEMENS
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 45 To be negotiated

Main parts list:

Item Brand
Ball screwTAIWAN-SHAC C3 class
Linear guidewayTAIWAN-HIWIN H class
Ball screw bearingCHINA top-HRB P4 class
SpindleOwn-made
Spindle bearingCHINA Top-HRB
Spindle driver&motorCHINA Top-CTB
Tool magazine belt wheel& beltUSA-GATES
Tool magazine bearingJAPAN-NSK
Main electric partsFRANCE-SCHNEIDER
Lubrication pumpJoint-venture

Standard configuration:
SYNTEC 6MD CNC controller
6T Turret tool magazine

Optional configuration:
SIEMENS 808D ADVANCED CNC controller
4th axes
