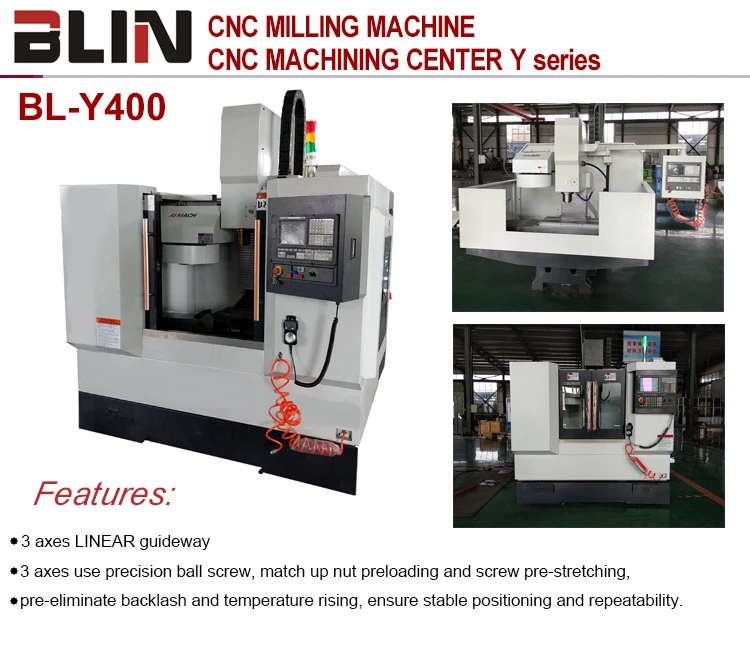

New Model Economic Small CNC Vertical Milling Machine (BL-Y400)

  • >=1 Units
    $16,600.00
Model Number:
BL-Y400
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 6 Units)
Report Suspicious Activity
Overview

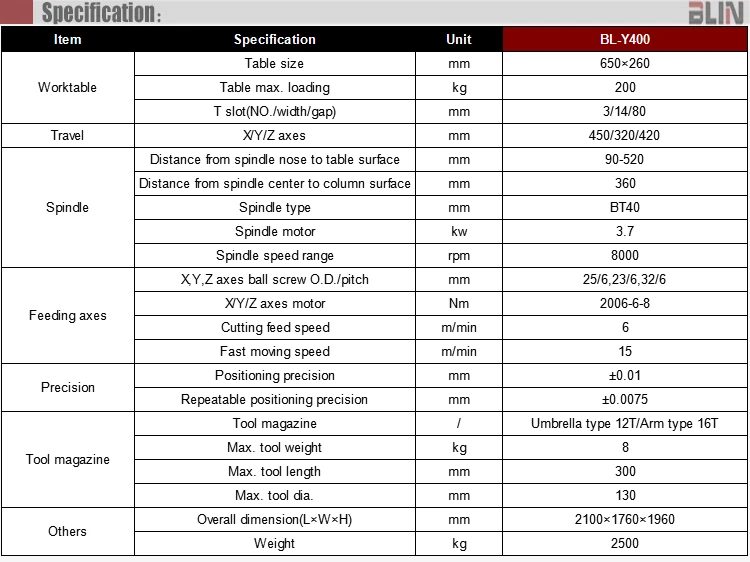

Quick Details
Condition:
New
Warranty:
1 year
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Voltage:
380/220/415
Certification:
CE ISO
Type:
Vertical
Dimension(L*W*H):
2100*1760*1960mm
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Key Selling Points:
Automatic
Weight (T):
2.5
Table Size:
650*260mm
X/Y/Z Axes travel:
450/320/420mm
Spindle Motor Power:
3.7kw
Spindle Speed Range:
8000rpm
Spindle type:
BT40
Table max. loading:
200kg
T slot(NO./width/gap):
3/14/80mm
Tool magazine type:
Umbrella type 12T/Arm type 16T CNC
X/Y/Z axes feeding motor:
6/6/8N.m
Controller::
SIEMENS/FANUC
After-sales Service Provided:
Online support, Video technical support
Power (kW):
3.7
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 To be negotiated


Main parts list:

ItemBrand
CNC controllerGERMANY-SIEMENS
Servo driver&motorGERMANY-SIEMENS
Spindle unitTAIWAN-VOLIS/KENTURN
Spindle encoderGERMANY-HEIDENHAIN
Servo powered tool turretITALY-BARUFFALDI
Ball screwTAIWAN-PMI/HIWIN
Ball screw bearingJAPAN-NSK
Linear guidewayTAIWAN PMI/HIWIN
Lubrication systemTAIWAN-ISHAN
Rotary oil cylinder&chuckTAIWAN-AUTOGRIP
Hydraulic partsTAIWAN/JAPAN
Coolant pumpJoint-venture
MPGUSA-HEDSS
Tri-color indication lampKOREA-QLIGHT
Isolation transformerCHINA top-CHINT/JIUKO
BreakerFRANCE-SCHNEIDER
AC contactorFRANCE-SCHNEIDER
RelayJAPAN-OMRON
DC Switching Mode Power SupplyTAIWAN-MEANWELL
Terminal blockGERMANY-WEIDMULLER
Synchronous beltUSA-GATES
Synchronous belt wheelTAIWAN-PTP
NutsTAIWAN-YINSH
Shaft coulpingGERMANY-KTR/R+W
Extensible coverTAIWAN-WANHE
Chip conveyor&chip bucketTAIWAN-WANHE
Coolant pipeTAIWAN-WEIDING



Standard configutation:
SIEMENS 808D ADVANCED CNC Controller
12T Umbrella type tool magazine
Optional configuration:
SIEMENS 828D/FANUC 0I MF CNC Controller
16T Arm type tool magazine
Chip conveyor
4th axes rotary table
Roller type linear guideway
Half closed cover
