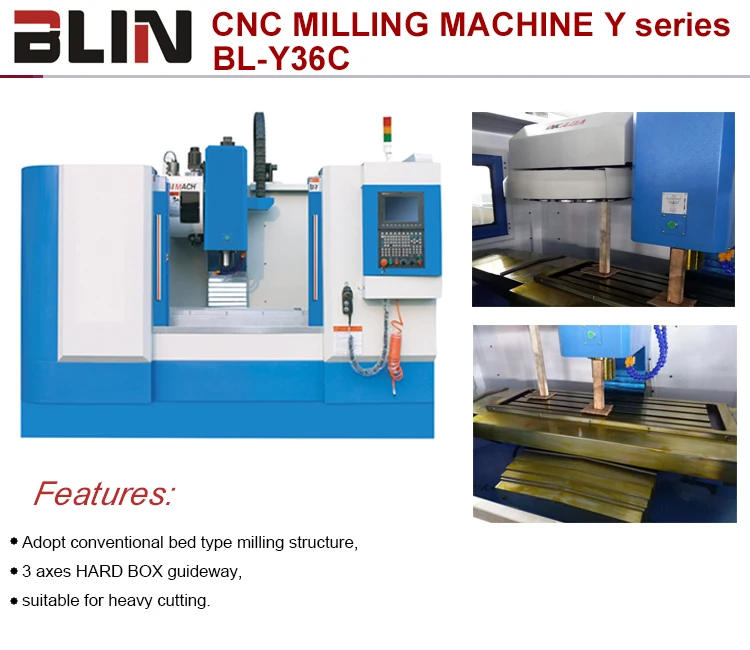

New model taiwan technology mini economic CNC Vertical metal milling machine metal for steel(BL-Y36C)

  • >=1 Units
    $17,100.00
Table Size:
1250*360
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
BL-Y36C
Condition:
New
Dimension(L*W*H):
3200*2250*2300mm
Type:
Vertical
Certification:
CE ISO
Voltage:
380/220/415
Range of Spindle Speed(r.p.m):
100 - 8000
Positioning Accuracy (mm):
0.02
Repeatability (X/Y/Z) (mm):
0.01
Table Travel (mm):
X/Y/Z:900/350/480
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Key Selling Points:
Automatic
Weight (KG):
4500
Table max. loading:
400kg
X/Y/Z Axes Travel:
900/350/480mm
X/Y/Z axes motor:
8/8/8N.m
T slot(NO./width/gap):
3/18/80mm
Spindle Speed:
100-8000rpm
Spindle Motor:
5.5kw
Spindle type:
BT40
Tool magazine:
Umbrella type 16T/Arm type 16T
CNC Controller:
Siemens
Fast moving speed:
6m/min
CNC or Not:
CNC
After-sales Service Provided:
Online support, Video technical support
Power (kW):
5.5
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 To be negotiated


Main parts list:

PartsBrand
Spindle bearingJAPAN-NSK
Ball screwCHINA TOP
SpindleTAIWAN-VOLIS
Tool magazineTAIWAN-OKADA
Motor&driverGERMANY-SIEMENS
Air-oil cylinderTAIWAN
Pneumatic partsTAIWAN-AIRTAC
Electric partsFRANCE-SCHNEIDER
Lubrication pump

Joint-venture



Standard configuration:
SIEMENS 808D ADVANCED CNC Controller
16T Umbrella type tool magazine
Full closed cover

Optional configuration:
SIEMENS 828D/FANUC 0I MF CNC Controller

16T Arm type tool magazine
Chip conveyor
4th axes rotary table
Half closed cover
