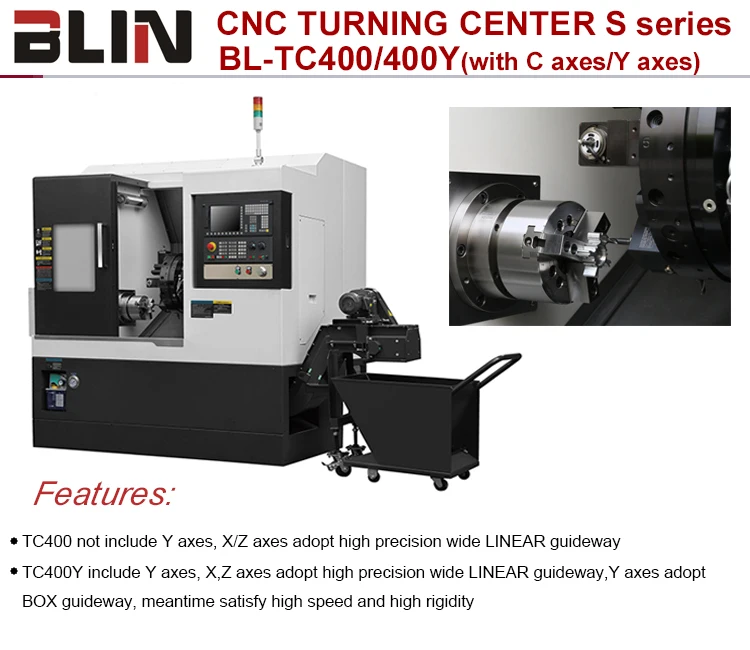

CNC TURNING CENTER TAIWAN Technology Slant Bed CNC Turning Lathe Center with C axis/Y axis(BL-TC400/400Y)

  • >=1 Units
    $53,000.00
Max. Swing Diameter (mm):
500mm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 5 Units)
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Type:
TURNING CENTER
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
Zhejiang, China
Brand Name:
BLIN
Model Number:
BL-TC400/TC400Y
Condition:
New
Dimension(L*W*H):
2800*1460*2050mm
Certification:
CE
Voltage:
380/220/415
Applicable Industries:
Building Material Shops, Machinery Repair Shops
Key Selling Points:
High-accuracy
Weight (KG):
3500
Machine Type:
Horizontal CNC Turning Lathe

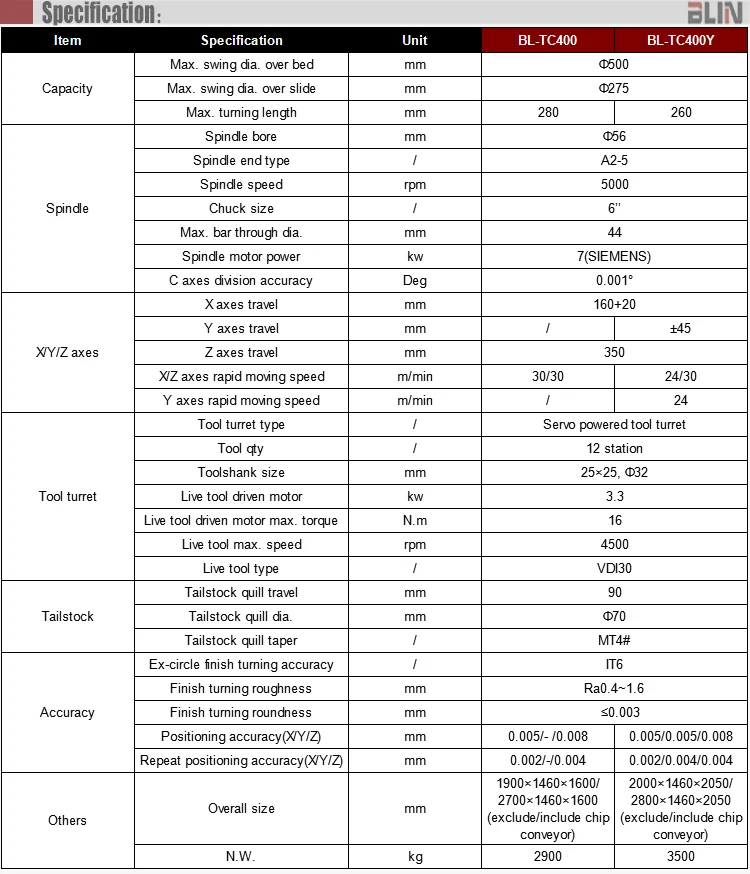

Max. Swing Diameter:
500mm, 500mm
Max. swing diameter over slide board:
275mm
Max.effective turning length:
280/260mm
Max. bar through dia.:
44mm
spindle bore:
56
spindle type:
A2-5
Spindle speed:
5000rpm
Turret type:
Servo powered tool turret
Chuck size:
6''
CNC or Not:
CNC
Automatic Grade:
Automatic
Power(W):
7KW
Supply Ability
Supply Ability:
500 Unit/Units per Year
Packaging & Delivery
Packaging Details
Plywood Case(LCL);
Wooden/steel Pallet(FCL)
Port
Ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 50 To be negotiated
1




Main parts list:

Item

Brand

CNC controller

GERMANY-SIEMENS

Feeding driver&motor

GERMANY-SIEMENS

Spindle driver&motor

GERMANY-SIEMENS

Spindle unit

TAIWAN-LOSEN/KENTURN

Spindle encoder

GERMANY-HEIDENHAIN

Servo powered tool turret

GERMANY-SAUTER

Ball screw

TAIWAN-PMI/HIWIN

 Ball screw bearing

JAPAN-NSK/TAIWAN-TPI

Linear guideway

TAIWAN PMI/HIWIN

Lubrication system

TAIWAN-ISHAN

Rotary oil cylinder&chuck

TAIWAN-CH-H

Hydraulic parts

TAIWAN/JAPAN

Coolant pump

Joint-venture

MPG

USA-HEDSS

Tri-color indication lamp

KOREA-QLIGHT

Isolation transformer

CHINA top-CHINT/JIUKO

Breaker

FRANCE-SCHNEIDER

AC contactor

FRANCE-SCHNEIDER

Relay

JAPAN-OMRON

DC Switching Mode Power Supply

TAIWAN-MEANWELL

Terminal block

GERMANY-WEIDMULLER

Synchronous belt

USA-GATES

Synchronous belt wheel

TAIWAN-PTP

Nuts

TAIWAN-YINSH

Shaft coulping

GERMANY-KTR/R+W

Extensible cover

JAPAN-LOCOSO

Chip conveyor&chip bucket

TAIWAN-WANHE

Coolant pipe

TAIWAN-WEIDING



Standard configuration:
SIEMENS 828D CNC controller
Spindle: SIEMENS servo motor& driver, C axes
Hydraulic chuck
12 station SERVO VDI powered tool turret
Exclude Tailstock
Standard accessories:
CNC controller programming and operating manual
CNC controller diagnostics manual
Machine user manual(mechanical part)
Machine user manual(electricity part)
Inspection report& certificate of conformity
Packing list
User manual for other parts
Leveling pads& bolts
Regular using tool kits
Optional configuration:
Y axes
Hydraulic tailstock
Chip conveyor
Tool setting probe
BMT powered tool turret



2345

BL-TC400/400Y:https://youtu.be/dkGWovZiFLw
